FABCON is available in two series:
B series: polyester fabric conveyor belts with PU impregnated fabrics having low coefficient of friction.
R series: raw fabric (bare by bare) belts with fabric surface made of polyester, cotton, used in baker lab, both before and after the baking oven.
FABCON
Standard conveyor
FABCON
Fabric
SKU
FABCON
Features
Low coefficient of friction.
Resistance to abrasion.
Resistance to cutting.
Not adhesive.
Working temperature
-10 / +70°C

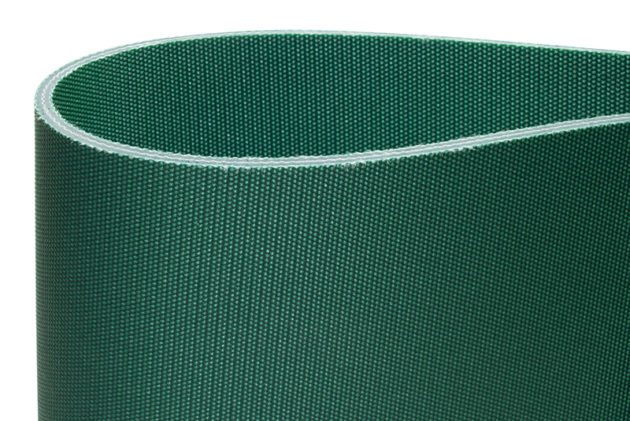

Polyester fabric conveyor belts with PU impregnated fabrics having low coefficient of friction. Highly resistant to abrasion. Suitable for single load conveying, cutting benches, textile industry applications, conveyors with lateral push, and roll-up doors. Also recommended for use in presence of grease, oily or fatty substances and non-aggressive chemical agents.

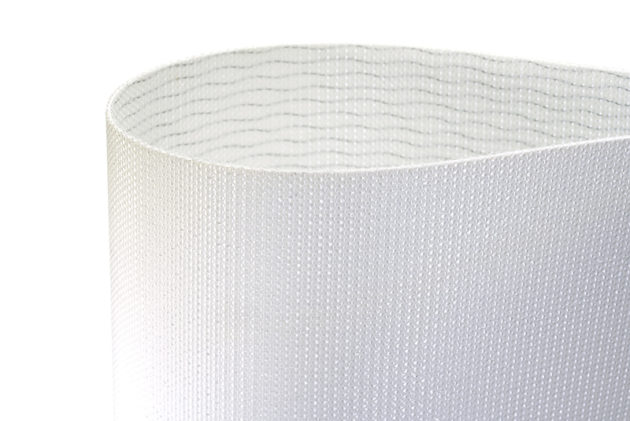

Raw fabric (bare by bare) belts with fabric surfaces made of polyester, cotton, or a special cotton/polyester blend designed to cleanly release dough in bakery applications. Available with a rigid or flexible weft with PU or PVC interply, these belts are mainly used to convey fresh dough, baked goods and bread, both before and after the oven. These belts are also suitable for use on packaging machines with or without product accumulation.
Sampla REF | Article NO | Description | Product PDF |
---|---|---|---|
R4 | KC1WH0801 | FABCON | 1FC/4 W08 V0/V0 FA | Download |
R10 | KC2WH1201 | FABCON | 2LR/8 W12 00/00 AS FA | Download |
R11 | KC2TR1401 | FABCON | 2FC/6 TR14 00/00 FA | Download |
R12 | KC2WH1802 | FABCON | 2LR/8 W18 00/00 FA | Download |
R13 | KC2TR1001 | FABCON | 2LR/6 TR10 U0/00 AS FA | Download |
R13/DB | KC2LB1001 | FABCON | 2LR/6 DB10 U0/U0 AS FA | Download |
R14 | KC2WH1401 | FABCON | 2LR/8 W14 U0/00 FA | Download |
R16 | KC2TR1502 | FABCON | 2R-RX/14 TR15 00/00 AS FA | Download |
R18 | KC2TR1901 | FABCON | 2RC-R/8 TR19 00/00 FA | Download |
R19 | KC2TR2401 | FABCON | 2RC /5 TR24 00/00 FA | Download |
R30 | KC3TR3001 | FABCON | 3FC/8 TR30 00/00 FA | Download |
